• ISN T2

Impedance Stabilization Network ISN T2

◎Magnetic devices of ISN T2A, ISN T4A, ISN T8, ISN T8-Cat6 or CDN T8
◎ISN ground wire with steel surface
◎Allow vertical positioning (small room wall l)
◎Easy installation
◎can be installed on a non-smooth surface

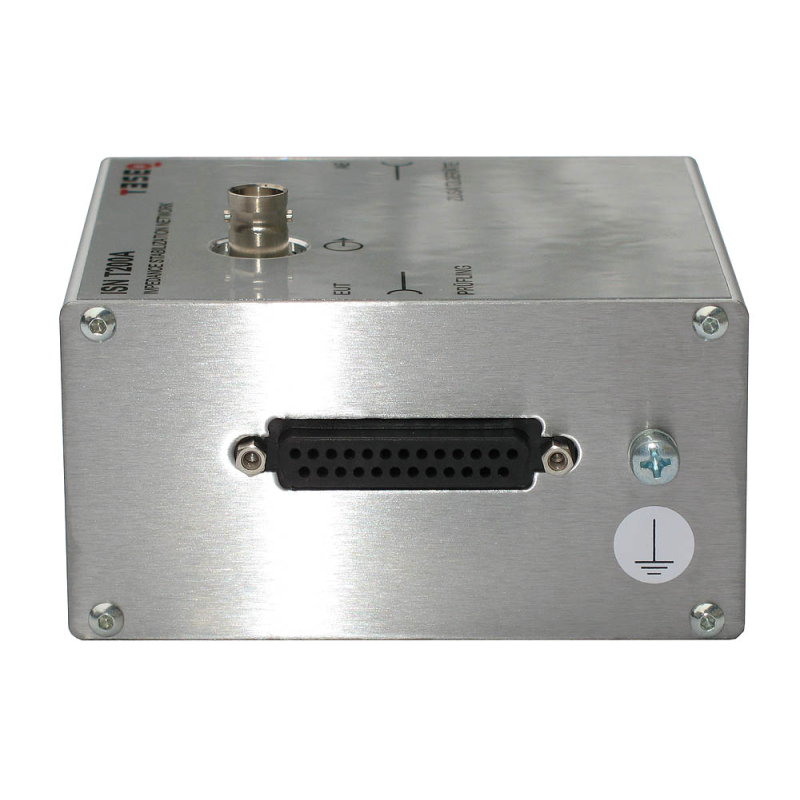

Model : ISN T2

Impedance Stabilization Network (ISN) for Unscreened Balanced Pairs



  •   For use with one unscreened balanced pairs
  •   Refers schematic circuit example in CISPR 22/32 Figure D.1/G.1
  •   Intended for connection to cable category 3 and 5

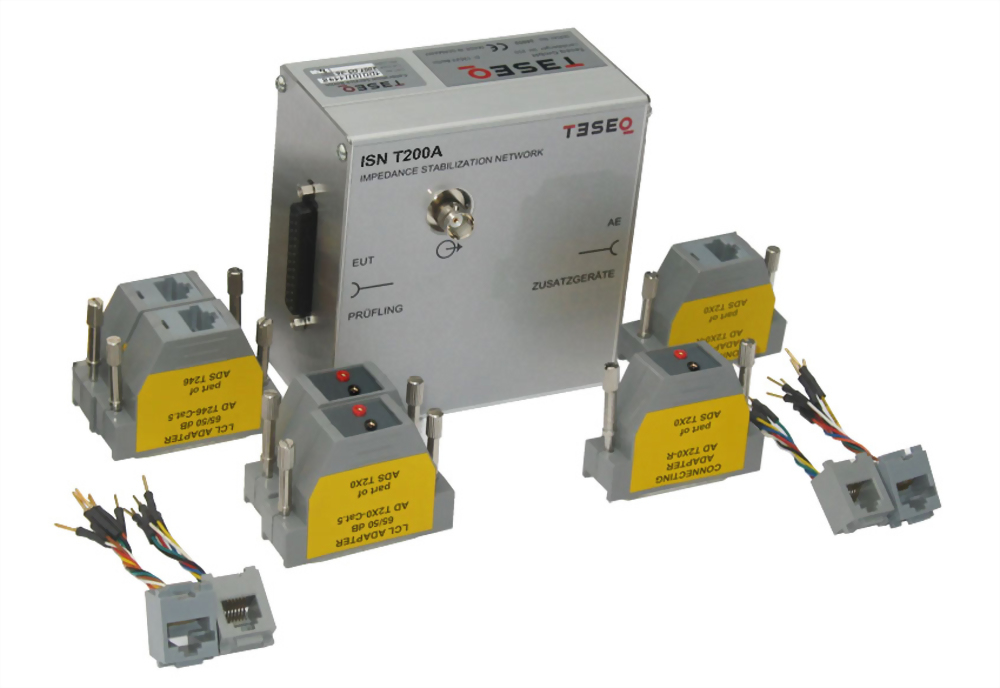

  •   Changeable pin-arrangements with RJ11 and RJ45
  •   Can be used as CDN for IEC/EN 61000-4-6 immunity tests



  •        IEC/EN 61000-4-6

  •        CISPR 15

  •        CISPR 16-1-2

  •        CISPR 16-2-1

  •        CISPR 22

  •        CISPR 24

  •        CISPR 32

  •        EN 61000-6-1

  •        EN 61000-6-2

  •        EN 61000-6-3

  •        EN 61000-6-4

  •        IEC 60533

  •        IEC 60601-1-2

  •        IEC 61326
