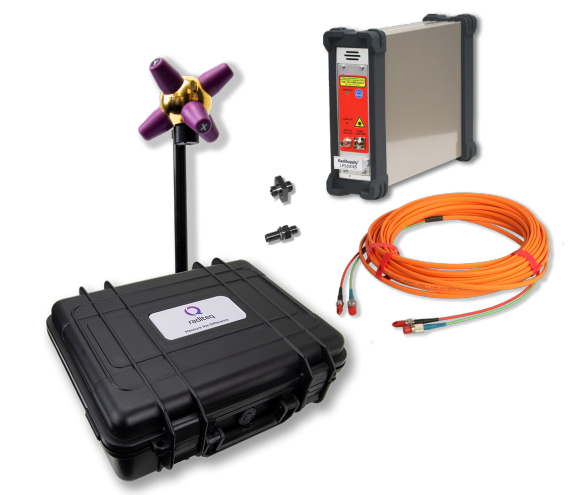

Model: RSS2010E
Measuring range: 0,5 to 200 V/m
Frequency range: 20 MHz to 10 GHz
Frequency response: 20 MHz – 1 GHz --> -3 dB/+1,5 dB
1 GHz to 10 GHz --> -3 dB/+3,5 dB
Resolution 0.01 V/m
Linearity (1): ± 0.5 dB ± 0.5 V/m
Isotropic deviation (2): ± 0,5 dB up to 1 GHz, typical 0,25 dB
< ± 1 dB from 1 GHz up to 3 GHz
< ± 5 dB from 3 GHz up to 10 GHz
Pre Certification
Anechoic Chamber
GTEM Cell
