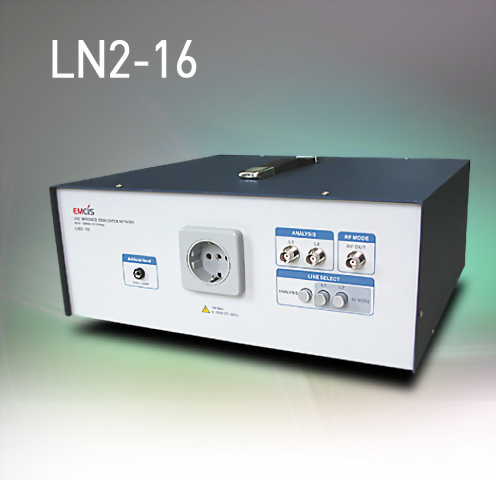

Model : LN2-16N

Compliant with CISPR16-1-2 requirements.

As EMCIS’own unique function, LISN has the two different mode selection, Test mode(L1 & L2) and Analysis mode (Common-Mode & Differential-Mode).



Specification

Frequency Range

9kHz~30MHz

In/Out Connector

AC Socket-2P

Supply Line / Phase

2/1

Network Inductance

50Ω/50uH + 5Ω + 250uH

Max. Current

16A

Max. Voltage

AC440V, DC1000V

Power Frequency

DC~60Hz

Output Mode

Test & Analysis

Dimensions(mm)

W355  D358  H148

Weight

8.5 kg


LN2-16N Key Features

  • Satisfy CISPR16-1-2 requirements.
  • Mode selectable (Test mode and  Analysis mode).
  • Dual Line-DC/AC 16A Max.


When used with a general spectrum analyzer or receiver, it can be used as a Line Impedance Stabilization Network (LISN) test.
When used with the EMCIS EA-2100 or EA-300 and spectrum analyzer or receiver, in addition to testing, common mode / differential mode analysis
