• ISN T8-Cat6

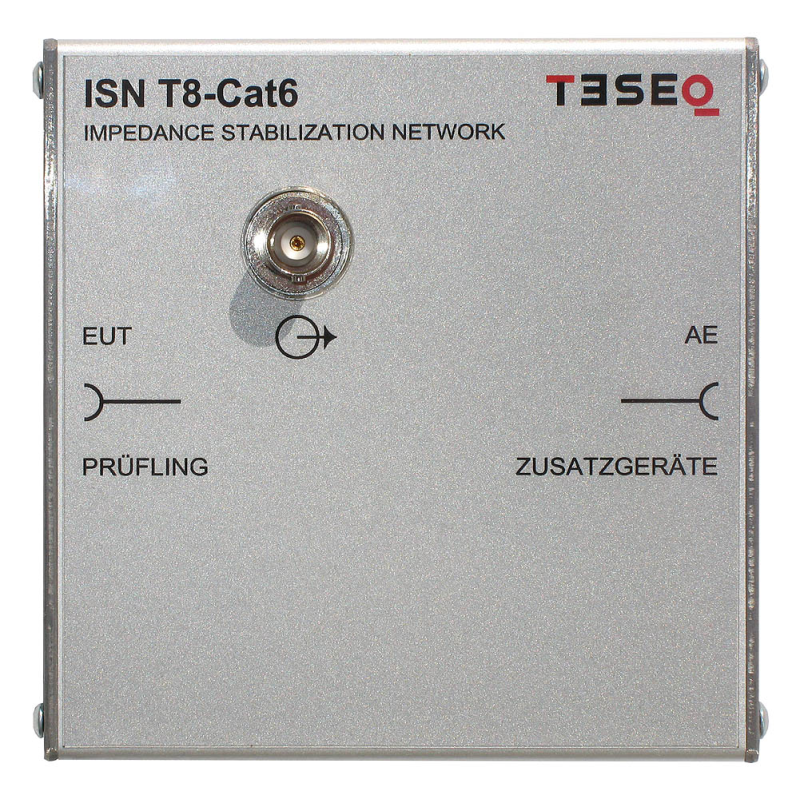

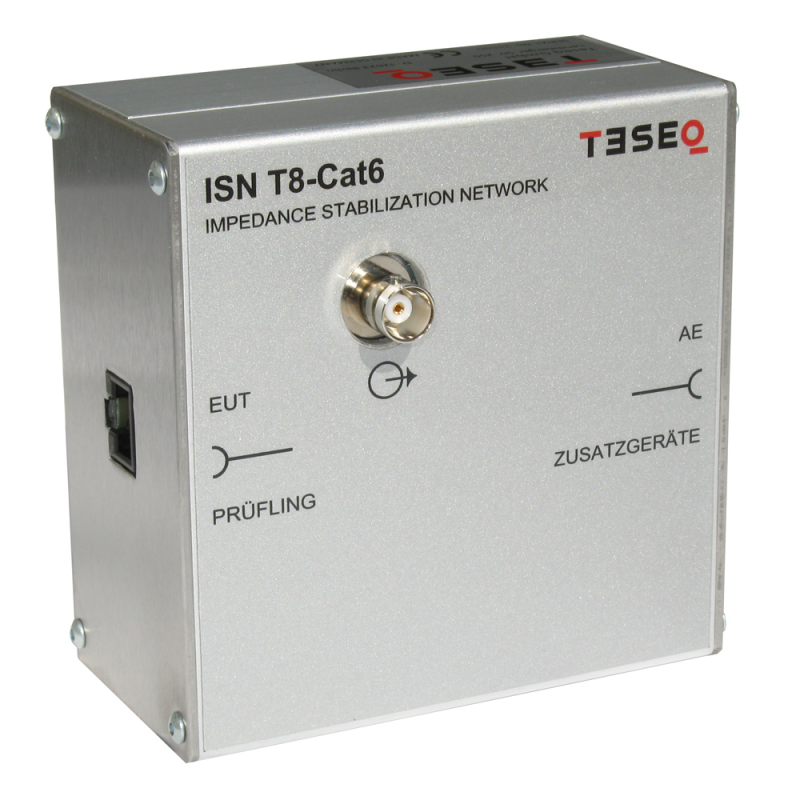

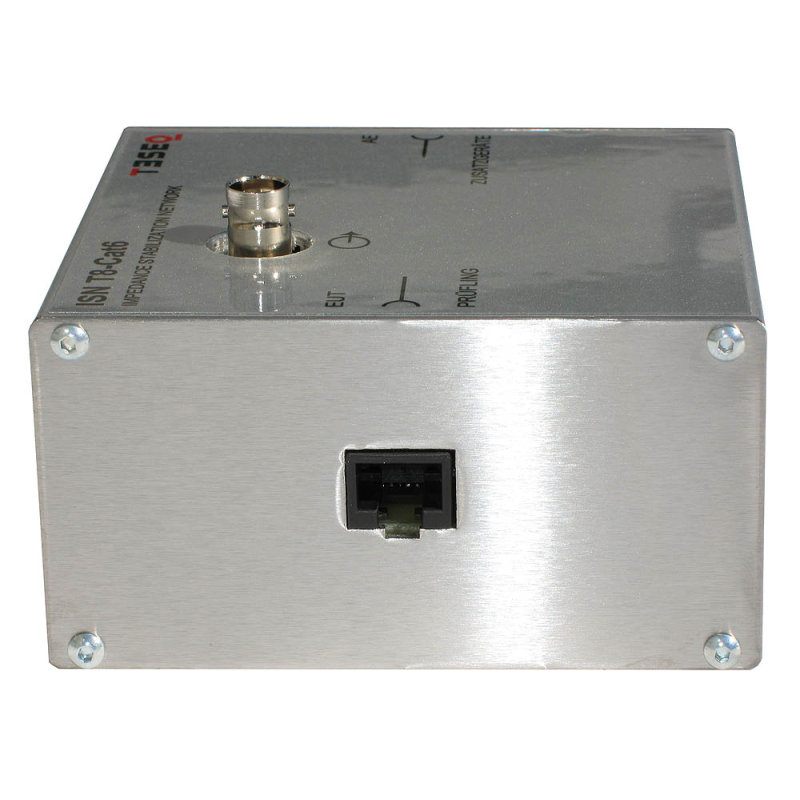

Impedance Stabilization Network ISN T8-Cat6

◎Impedance Stabilization Network (ISN) for Unscreened Balanced Pairs
◎For use with one, two, three, or four unscreened balanced pairs
◎Refers schematic circuit example in CISPR 22/32 Figure D.3/G.3
◎Intended for connection to cable category 6
◎1000BaseT and PoE application
◎Can be used as CDN for IEC/EN 61000-4-6 immunity tests
Model : ISN T8-Cat6

Impedance Stabilization Network (ISN) for Unscreened Balanced Pairs



  •   For use with one, two, three, or four unscreened balanced pairs
  •   Refers schematic circuit example in CISPR 22/32 Figure D.3/G.3
  •   Intended for connection to cable category 6
  •   1000BaseT and PoE application
  •   Can be used as CDN for IEC/EN 61000-4-6 immunity tests




  •          IEC/EN 61000-4-6

  •          CISPR 15

  •          CISPR 16-1-2

  •          CISPR 16-2-1

  •          CISPR 22

  •          CISPR 24

  •          CISPR 32

  •          EN 61000-6-1

  •          EN 61000-6-2

  •          EN 61000-6-3

  •          EN 61000-6-4

  •          IEC 60533

  •          IEC 60601-1-2

  •          IEC 61326
