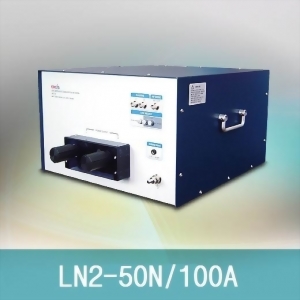

Impedance Stabilization Network LN2-50 / 100

Model : LN2-50 / 100

Compliant with CISPR16-1-2 requirements.

As EMCIS’ own unique function, LISN has the two different mode selection, Test mode(L1 & L2) and Analysis mode (Common-Mode & Differential-Mode).




Specification

MODEL

LN2-50N

LN2-100A

Frequency Range

9kHz~30MHz

Supply Line / Phase

2/1

Network Inductance

50Ω/50uH+ 5Ω + 250uH

Max. Current

50A

100A

Max. Voltage





AC60Hz,  440V

AC400Hz, 120V

DC1000V

Dimensions(mm)

W300

W350



D705

D530



H262

H241

Weight

30 kg

28 kg


LN2-50N/100A Key Features

  • Satisfy CISPR16-1-2 requirement.
  • Selectable Test mode and  Analysis mode
  • Dual Line-DC/AC  50A/100A .



When used with a general spectrum analyzer or receiver, it can be used as a Line Impedance Stabilization Network (LISN) test.
When used with the EMCIS EA-2100 or EA-300 and spectrum analyzer or receiver, in addition to testing, common mode / differential mode analysis
