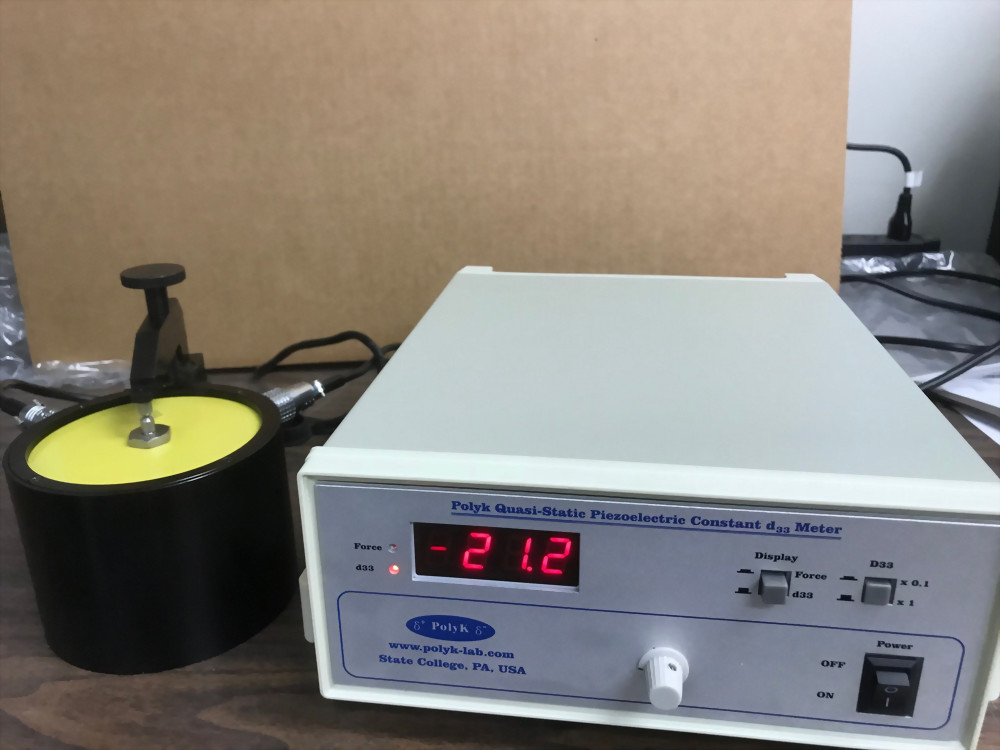

• The economical piezoelectric measuring instrument PKD3-2000 is used to measure d33 of polymer PVDF, PVDF TrFE, or piezoelectric ceramic materials.
• Two measurement ranges: 10 to 2000pC/N, or 1 to 200pC/N, pressure source 0.25N, frequency 110 Hz.
• Other models include PKD3-4000, with a measurement range of up to 4000 pC/N for single crystal PMNPT ceramics.
• It can be used in conjunction with PolyK static force sensors to improve measurement accuracy and reproducibility.

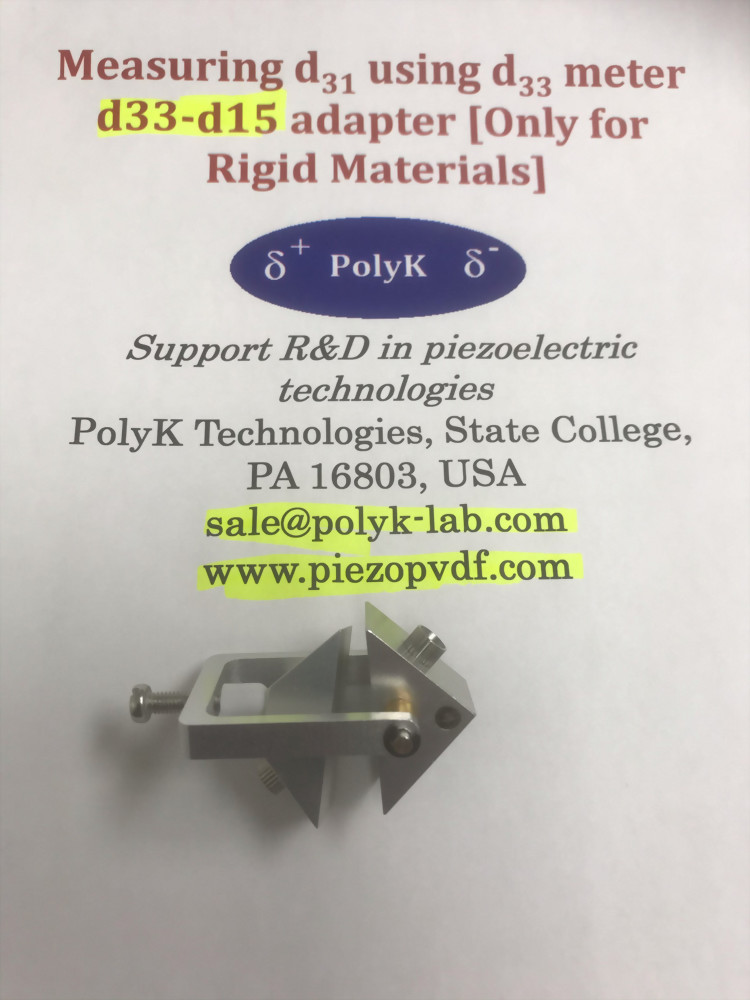

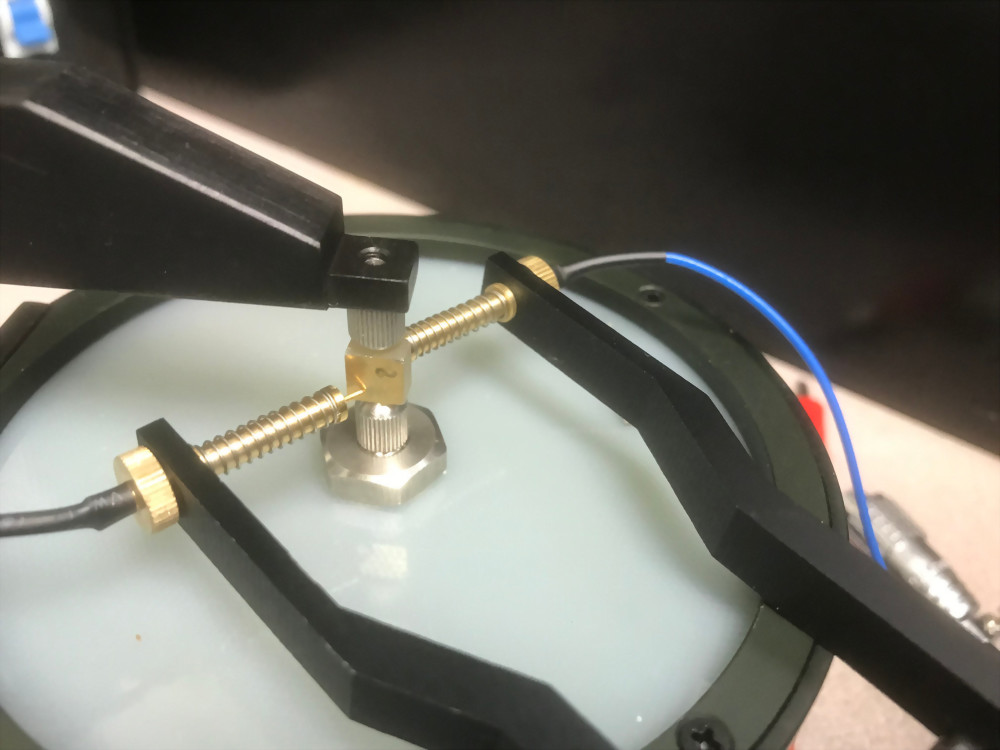

• Optional d31/d15 testing fixtures.
