• ISN T8

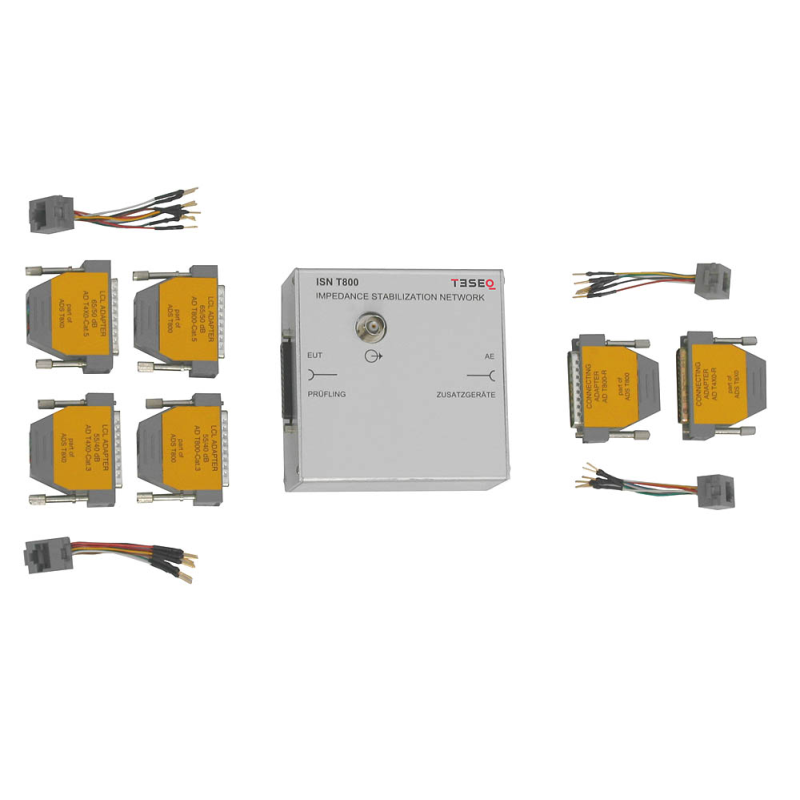

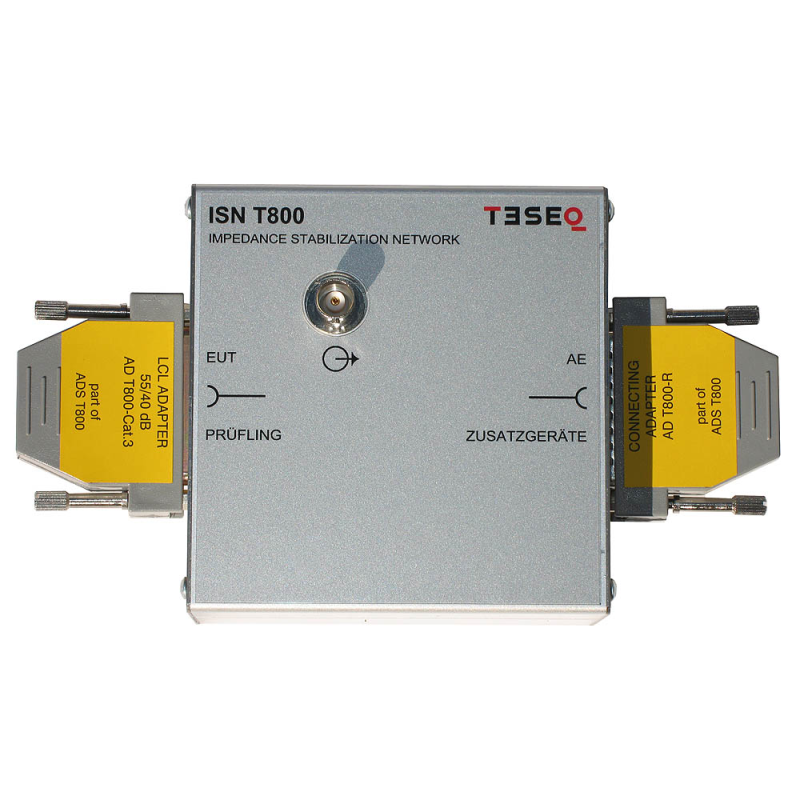

Impedance Stabilization Network ISN T8

◎ Impedance stability network
◎ can be used for one, two, three or four pairs of unshielded balanced cable test
◎Measurement of Category 3 and Category 5 cables that meet CISPR 22, Ed.5.2, 2006 and EN 55022 Sept. 2006 standards (revised version of IEC/CISPR 22: 2005)
◎1000 BaseT and PoE Applications
◎ Compatible with RJ11 and RJ45
Model : ISN T8

Impedance Stabilization Network (ISN) for Unscreened Balanced Pairs



  •    For use with one, two, three, or four unscreened balanced pairs
  •    Refers schematic circuit example in CISPR 22/32 Figure D.3/G.3
  •    Intended for connection to cable category 3 and 5
  •    1000BaseT and PoE application
  •    Changeable pin-arrangements with RJ11 and RJ45



  •        CISPR 15
  •        CISPR 16-1-2
  •        CISPR 16-2-1
  •        CISPR 22
  •        CISPR 32
  •        EN 61000-6-3
  •        EN 61000-6-4
