ProGrAnalog's SP5 PDN testing tool is an approved alternative to AMD SP5 SDLE,

Its characteristic is the active module FFED device,

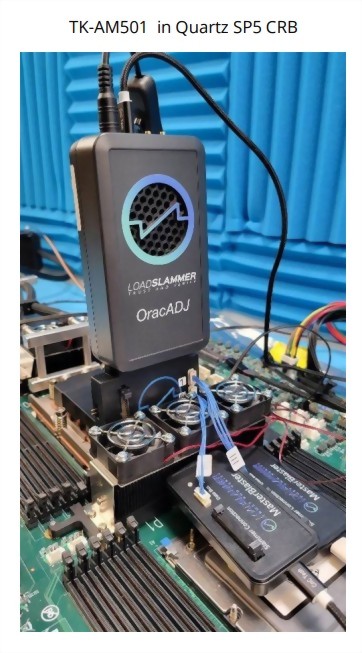

which can be plugged into AMD's SP5 test socket and controlled by the LoadSlammer ORAC ADJ device.

The testing kit is packaged in an easily navigable SP5 GUI that combines AMD's SP5 testing requirements,

• TK-AM501 supports SP5 sockets, infrastructure A-E
• TK-AM502 supports SP5 sockets, infrastructure A-G
• SP5 FFED* no need for separate back plate
• Only one FFED is required (minimum SP5 socket insertion)
• Support continuous AC and DC testing
• Up to 10 times faster test time with automated test suites
• Automatic PDF Report Generation
• Accuracy can reach 1%
• Approved by AMD
• Works with any SP5 cooling solution
• Telemetry reporting of SVI3
• Additional SVI 3 debug SW Application
• Including two SVI3 (up to 50MHz) MasterBlasters
• Save, file share and recall of waveforms
• Save, file share and recall of test vectors
• Q1 2023: CSV export of waveform data, API, 3D Sweep



✱✱FFED (Form Factor Equivalent Device)

✱✱Compared to SDLE

The PDN Tester provides a unique large signal testing function for identifying high-performance board level power converters.

This capability can bring reliability, cost and time saving benefits for circuit board and system testing in many aspects.

➤ SP5 test kit part number

     •  TK-AM501 for AMD SP5 sockets, infrastructure A-E

     •  TK-AM502 for AMD SP5 sockets, infrastructure A-G
