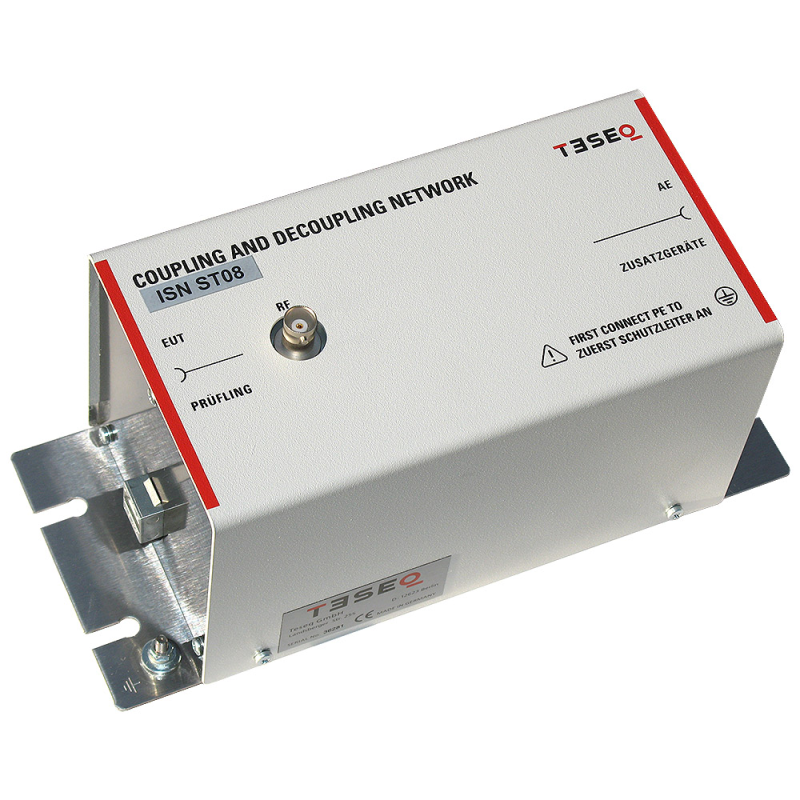

Impedance Stabilization Network (ISN) for Unscreened Balanced Pairs

•    For use with one or two unscreened balanced pairs

•    Refers schematic circuit example in CISPR 22/32 Figure D.2/G.2

•    Intended for connection to cable category 3 and 5

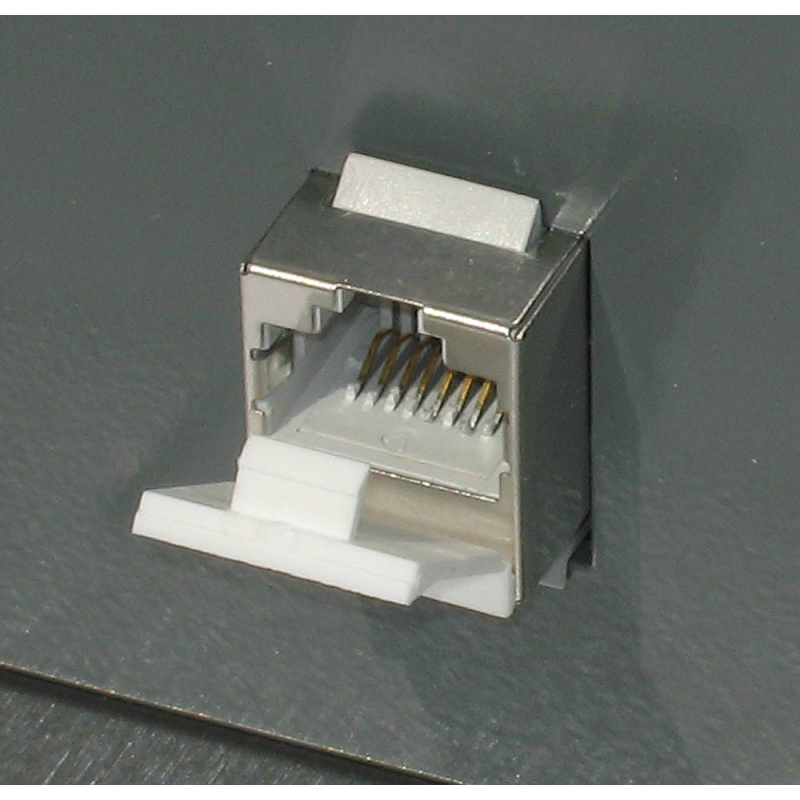

•    Changeable pin-arrangements with RJ11 and RJ45

•    Can be used as CDN for IEC/EN 61000-4-6 immunity tests

•         IEC/EN 61000-4-6

•         CISPR 15

•         CISPR 16-1-2

•         CISPR 16-2-1

•         CISPR 22

•         CISPR 24

•         CISPR 32

•         EN 61000-6-1

•         EN 61000-6-2

•         EN 61000-6-3

•         EN 61000-6-4

•         IEC 60533

•         IEC 60601-1-2

•         IEC 61326
