• Line Impedance Stabilization Network LN4-50 / 100

Line Impedance Stabilization Network LN4-50 / 100

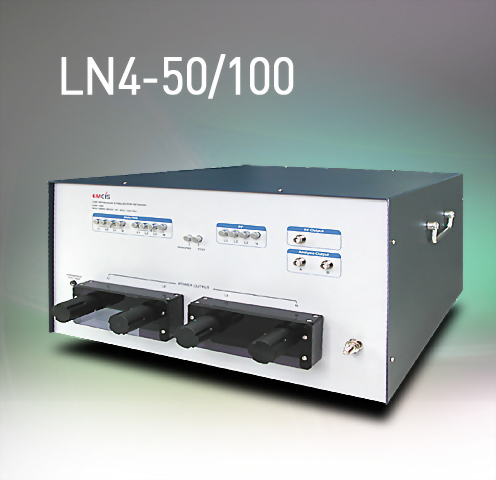

Model : LN4-50 / 100

Compliant with CISPR16-1-2 requirements.

As EMCIS’ own unique function, LISN has the two different mode selection, Test mode and Analysis mode (Common-Mode & Differential-Mode).

Specification

MODEL

LN4-50N

LN4-100A

Frequency Range

9kHz~30MHz

Supply Line / Phase

4/3

Network Inductance

50Ω/50uH+ 5Ω + 250uH

Max. Current

50A

100A

Max. Voltage

AC60Hz, 440V

 (Line to Line)

AC400Hz, 120V



DC1000V

Dimensions(mm)

W705

W720



D500

D634



H261

H242

Weight

60 kg

50 kg


LN4-50N/100A Key Features

  • Satisfy CISPR16-1-2 requirements.
  • Mode selectable -Test mode and  Analysis mode.
  • DC/AC, 50A/100A



When used with a general spectrum analyzer or receiver, it can be used as a Line Impedance Stabilization Network (LISN) test.
When used with the EMCIS EA-2100 or EA-300 and spectrum analyzer or receiver, in addition to testing, common mode / differential mode analysis
